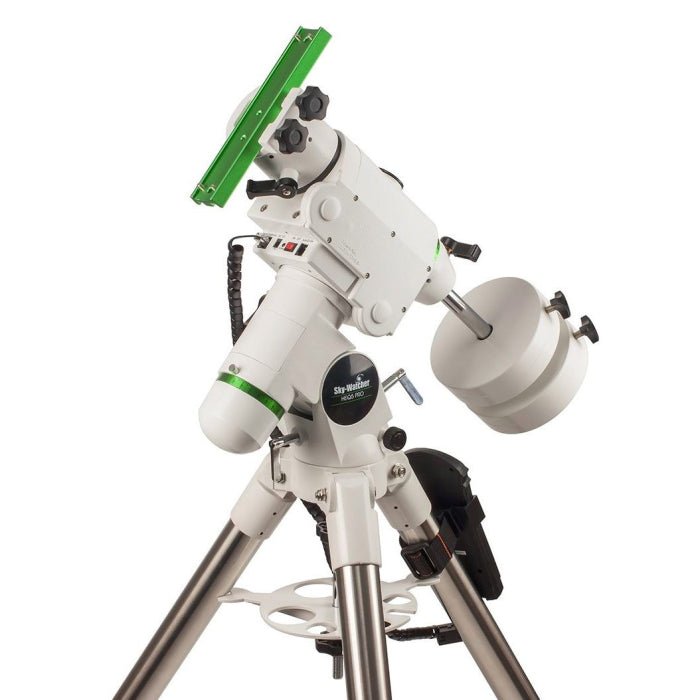

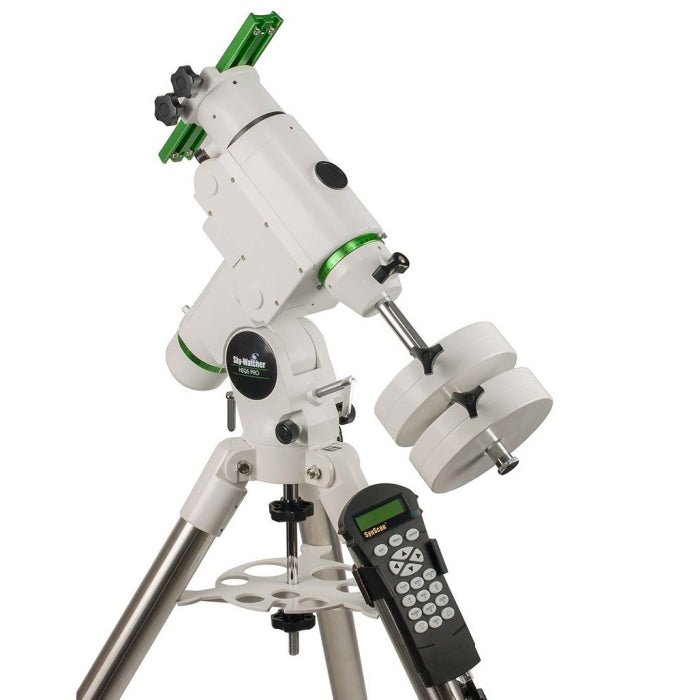

Sky-Watcher HEQ5 Pro GoTo Equatorial Mount

The Sky-Watcher HEQ5 Pro GoTo Equatorial Mount is a highly accurate German equatorial mount developed for astronomers who require reliability for both visual observation and astrophotography. Despite its relatively compact design, it delivers strong performance with a payload capacity of up to 13 kg, making it well-suited for refractors, Newtonians, and medium-sized imaging setups.

Built with solid mechanical construction and a precision stepper-motor drive system, the mount ensures smooth and consistent tracking, which is essential for long-exposure astrophotography. Its performance makes it a dependable option for capturing detailed deep-sky images as well as for extended observation sessions.

The mount is powered by the SynScan GoTo system, allowing automatic navigation to a database of over 42,000 celestial objects. It also includes advanced features such as Periodic Error Correction (PEC), dual-axis motorized tracking, and an ST-4 autoguider port for enhanced guiding accuracy and improved imaging results.

For ease of setup, the HEQ5 Pro comes with a stable tripod and an adjustable altitude base, enabling accurate and hassle-free polar alignment in both field and backyard environments. These features help ensure consistent performance regardless of location.

Offering an excellent balance between portability and capability, the HEQ5 Pro has earned a strong reputation among astrophotographers. Its precise tracking, durable build quality, and long-standing reliability make it one of the top choices in its category for deep-sky imaging and advanced astronomical use.

• Mount Type: German Equatorial Mount (GoTo, motorized)
• Payload Capacity: 13 kg (28.6 lb)
• Drive System: Dual stepper motors with brass worm gears
• Tracking Modes: Sidereal, Solar, Lunar
• Tracking Accuracy: ±10 arc-seconds (with PEC)
• Polar Alignment: Built-in polar scope with illuminator
• GoTo Controller: SynScan hand controller (42,900 object database)
• Autoguiding Port: ST-4 compatible
• Counterweights: Two × 5.1 kg (included)
• Latitude Adjustment: 15° – 65° range
• Tripod: Stainless-steel 1.75″ legs with accessory tray
• Power Requirement: 12 V DC, 2 A minimum
• Best For: Deep-sky imaging, planetary imaging, visual observation

What’s in the Box?

• Sky-Watcher HEQ5 Pro GoTo Equatorial Mount Head
• Stainless-steel tripod with accessory tray
• Two × 5.1 kg counterweights
• SynScan GoTo Hand Controller with database
• Polar scope with illuminator
• Power cable (12 V DC)
• Accessory hardware & tool kit
• User manual
