Askar 107PHQ Flat Field Astrograph 107mm f/7 Quadruplet APO Refractor Telescope for Astrophotography
Original price was: ₨1,250,000.00.₨995,000.00Current price is: ₨995,000.00.
The Askar 107PHQ is a premium 107mm flat-field quad APO astrograph designed for high-end astrophotography. Featuring a built-in field flattener and 44mm full-frame image circle, it delivers sharp, distortion-free wide-field images with excellent color correction and minimal setup complexity.
Product Description
The Askar 107PHQ Flat Field Astrograph is a professional-grade 107mm apochromatic refractor designed specifically for modern deep-sky astrophotography. Its advanced quad-element Petzval optical design integrates a built-in field flattener, eliminating the need for external correctors and simplifying imaging setup.
With a 107mm aperture and 740–749mm focal length at f/7, the 107PHQ delivers a perfect balance between resolution and field of view. It is optimized for capturing large nebulae, star fields, and medium-scale deep-sky targets with exceptional sharpness across the entire frame.
The optical system uses high-quality ED glass elements to reduce chromatic aberration and produce tight, round stars even at the edges of a full-frame sensor. Its 44mm corrected image circle ensures compatibility with modern CMOS astronomy cameras, making it a powerful choice for serious imagers.

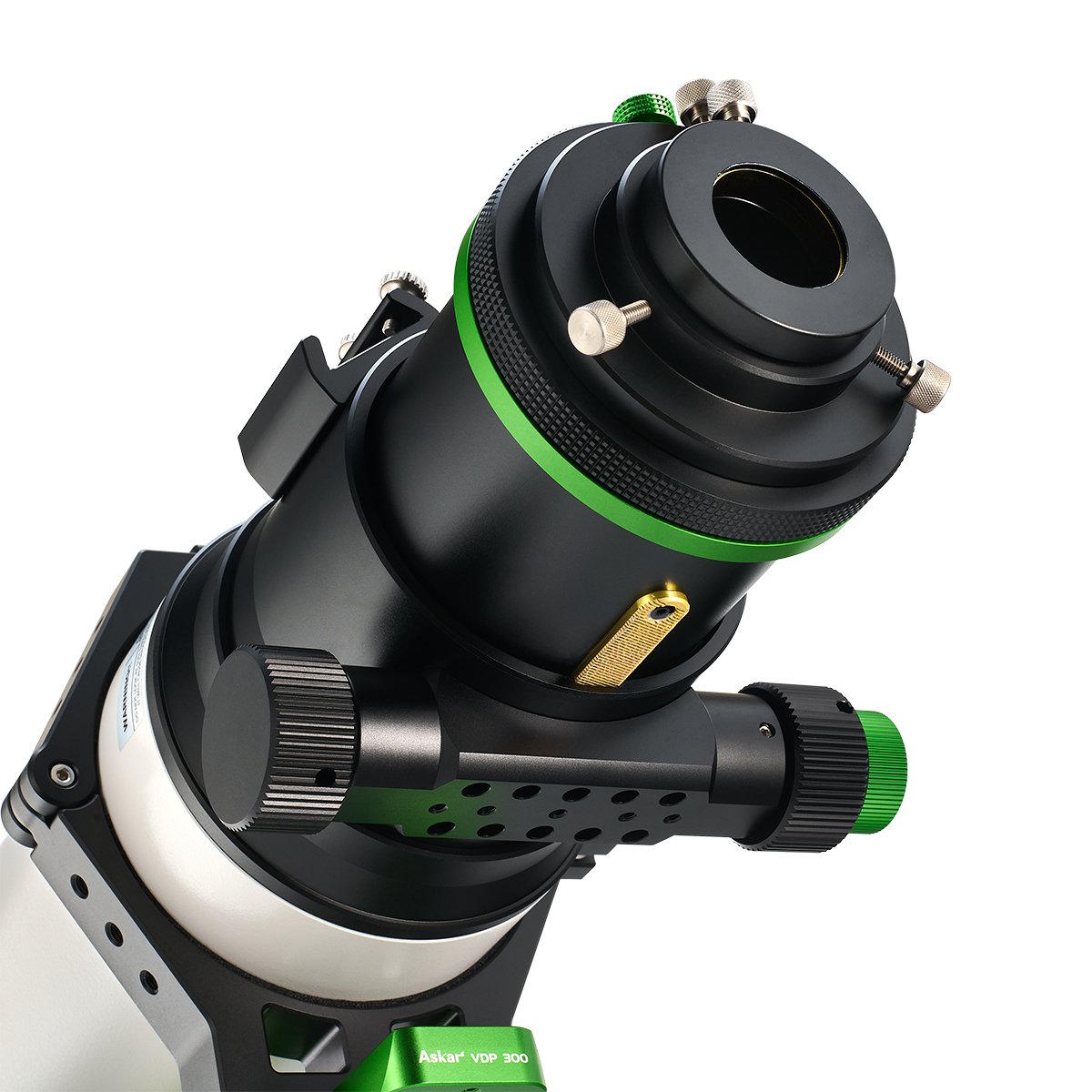

A heavy-duty 3.4″ rack-and-pinion focuser provides smooth, precise focusing and supports heavy imaging trains, including filter wheels and cooled cameras. The system is widely regarded as a “plug-and-play” astrograph for users who want professional results without complex optical spacing calculations.
Specifications
- Model: Askar 107PHQ
- Optical Design: Quadruplet Petzval Flat Field APO Astrograph
- Aperture: 107mm
- Focal Length: 740–749mm
- Focal Ratio: f/7
- Field Correction: Built-in flat-field optical system (no external flattener required)
- Image Circle: 44mm (full-frame compatible)
- Optical Elements: 4-lens design including ED glass elements
- Focuser: 3.4″ rack-and-pinion focuser with fine adjustment
- Mount Type: Vixen-style dovetail compatible
- Usage: Deep-sky astrophotography, galaxies, nebulae, wide-field imaging
- Backfocus: Designed for flexible camera and imaging train spacing
What’s Inside the Box
- 1 × Askar 107PHQ Optical Tube Assembly
- 1 × 3.4″ Heavy-Duty Focuser Assembly
- 2 × Tube Rings with Handle
- 1 × Vixen Dovetail Plate
- 1 × M48/M54/M68 Adapter Set
- 1 × Aluminum Carrying Case
- 1 × User Manual
- 1 × Original Packaging Box
